Stainless Steel Grooved Domed Cap Schedule 10 Fittings | Type 316L
Redline Pipe Fabrication & Welding has the capacity to offer Grooved Stainless Steel Fittings. Fitting sizes range from 4” to 16”.
Maximum Working Pressures
Maximum Working Pressures of all Fittings, with exception of Reducing Tees, are greater, or equivalent to the coupling used. See data sheet for the Coupling Pressure Rating. Coupling Pressure Ratings should consider the Wall Thickness of both Pipe and Fittings.

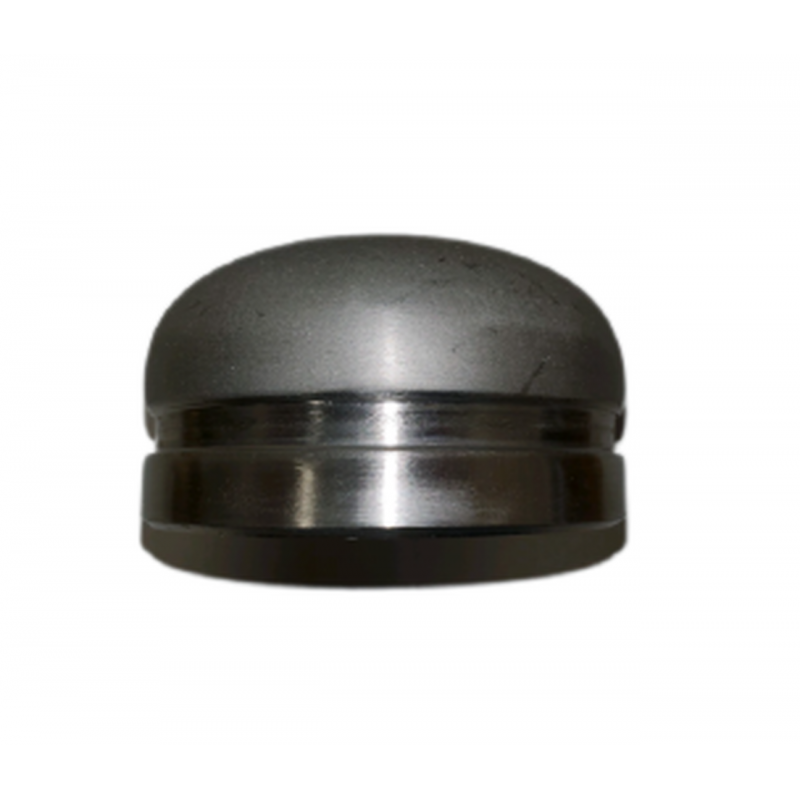

Domed Cap
Material Conforming to ASTM A403, Roll Grooves Conforming to ANSI/AWWA C606-04.

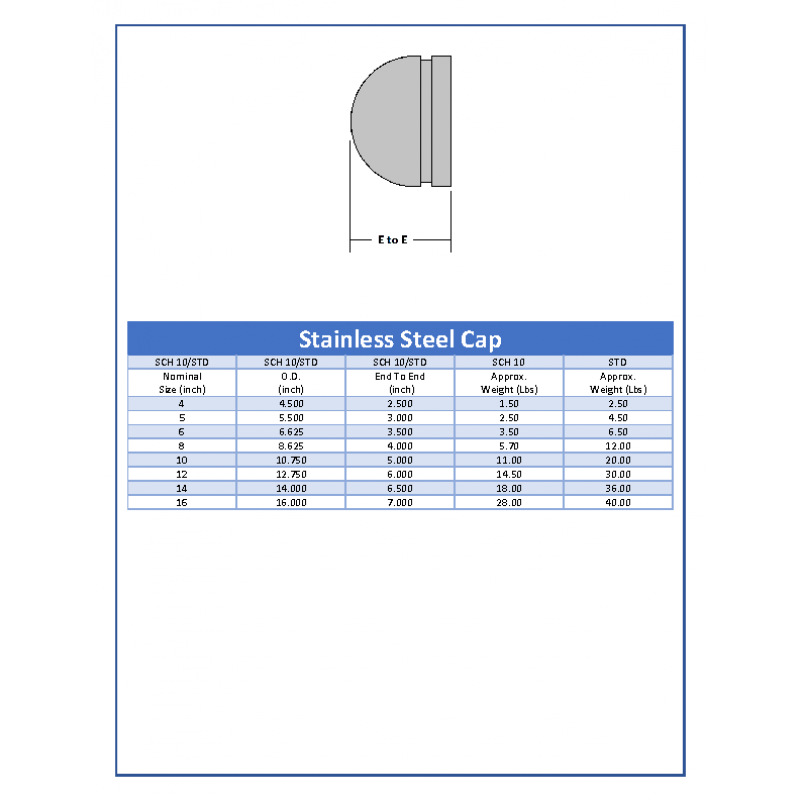

Download Datasheet: Download
